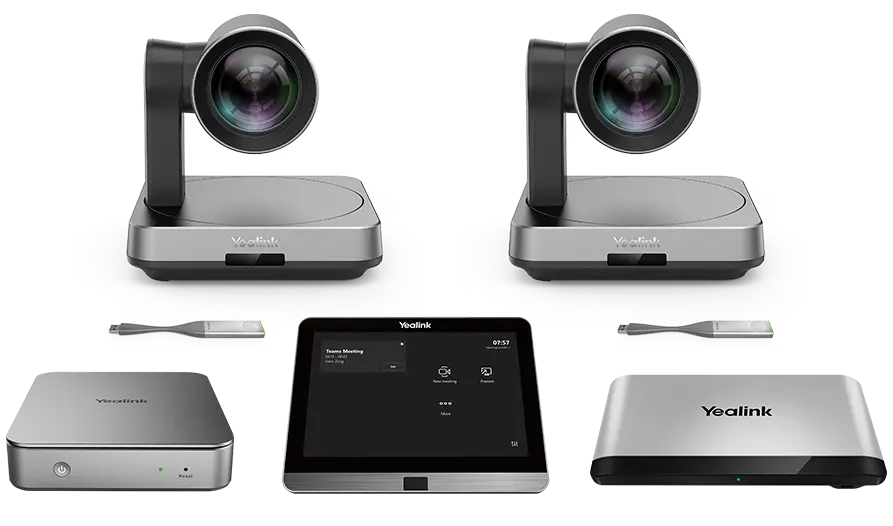

Yealink MVC940 Microsoft Teams Rooms System

Yealink MVC940 Microsoft Teams Rooms System

For businesses needing a seamless video conferencing experience, the Yealink MVC940 is an advanced Microsoft Teams Rooms solution tailored for extra-large rooms. It features dual UVC84 PTZ cameras, a user-friendly MTouch II control panel, and the powerful AVHub for smooth multi-camera operation. Designed for simplicity, it ensures an intuitive meeting experience with one-touch join, high-quality video, and effortless content sharing.

Yealink Kenya
0.00 KSh 0.00 KSh
899,000.00 KSh

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Yealink MVC940 Microsoft Teams Rooms System Datasheet

Yealink MVC940 Microsoft Teams Rooms System

The MVC940 is a remarkable solution that features dual 4K UVC84 cameras, which not only provide an impressive 12x optical zoom but also incorporate advanced auto-framing technology to ensure that every participant is perfectly captured in high-definition video. The accompanying AVHub is designed for versatility, allowing users to easily configure multiple camera setups and switch between various layouts tailored to the specific requirements of their meetings. This system excels in content sharing, supporting both wired and wireless options, which enhances the overall flexibility for all participants involved. At the heart of this setup is the powerful MCore Mini-PC, which, along with its integrated cable management system, simplifies the deployment process significantly, leading to reduced installation costs and time. Furthermore, the ability to manage devices remotely through Yealink's dedicated platform provides users with seamless monitoring capabilities, ensuring that updates and troubleshooting can be handled efficiently without disrupting the flow of meetings.

Yealink MVC940 features

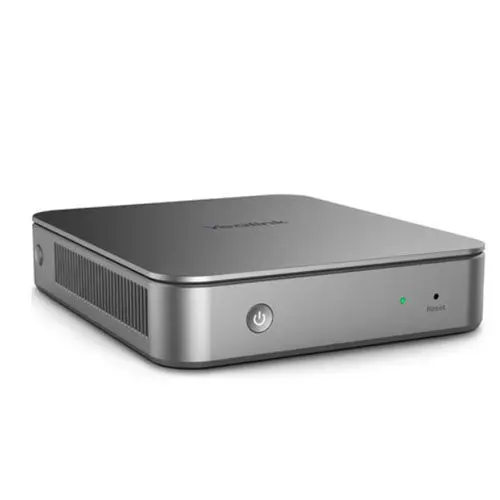

MCore Mini-PC

  • 8th-gen Intel® QUAD-CORE i5
  • Memory: 8GB (2 x 4GB)
  • Storage: 128GB SSD
  • 2 x HDMI video output with CEC supported
  • Bluetooth and Wi-Fi
  • 1x Yealink VCH port, connect to MTouch II
  • 4 x USB3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot
  • Built-in cable management

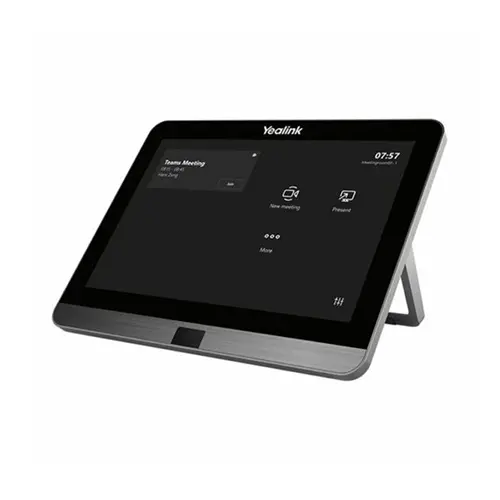

MTouch II panel

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5mm headset jack
  • Human Motion Sensor
  • Angle adjustable bracket (28° ~ 50°)
  • 1080P/30FPS FHD for sharing
  • Support wired and wireless content sharing
  • Built-in Wi-Fi AP for Yealink wireless presentation device
  • HDMI/USB-C video input

2 UVC50 PTZ Cameras

  • 1920 x 1080 video resolution
  • 60 frame rate
  • 5x optical zoom
  • Field of view (diagonal): 91°
  • Auto-framing
  • Camera presets
  • Pan range: 60°
  • Tilt range: 40°
  • 1 x Line-in (3.5mm)
  • 1 x Line-out (3.5mm)
  • 1 x Yealink Microphone port (RJ-45)
  • 1 x USB 2.0 Type-B
  • 1 x USB 2.0 Type-A
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

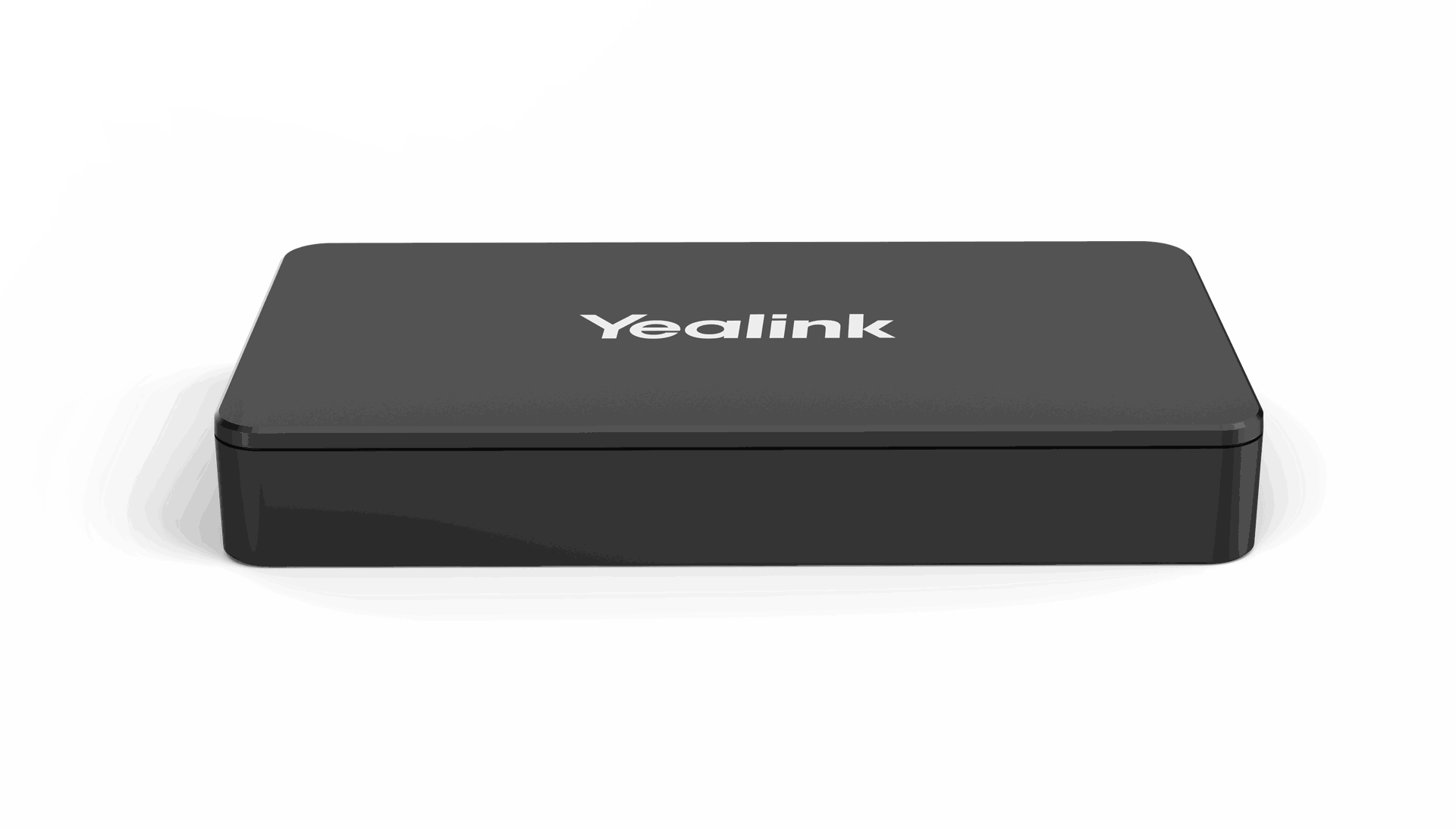

AVHub

  • 2 x USB-A Ports
  • 1 x USB-B Port
  • 1 x Codec Port
  • 7 x VCH Ports (RJ-45)
  • 1 x RCA In/Out Port

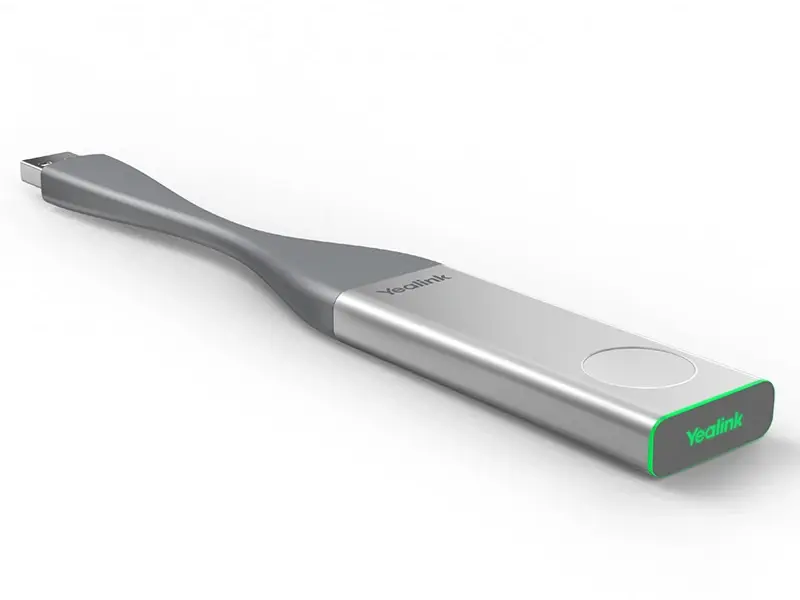

2 WPP20 wireless presentation pods

  • Plug-and-play wireless content sharing
  • 1080P/30FPS FHD resolution
  • Supports both Windows and Mac devices
  • Built-in Wi-Fi AP for direct connection
  • One-touch sharing with a single button
  • Low latency for real-time collaboration
  • USB-powered, no additional power adapter needed
  • Touchback control for interactive presentations
