Yealink MVC860 Microsoft Teams Rooms System

Yealink MVC860 Microsoft Teams Rooms System

The Yealink MVC860 is a comprehensive solution designed for medium and large conference rooms, optimized for use with Microsoft Teams. This system integrates advanced audio and video technology to enhance the meeting experience, making it easier for teams to connect and collaborate effectively. With its sleek design and user-friendly interface, the MVC860 aims to transform any meeting room into a high-performance collaborative space

Yealink Kenya
0.00 KSh 0.00 KSh
907,350.00 KSh

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Yealink MVC860 Datasheet

Yealink MVC860 Microsoft Teams Rooms System

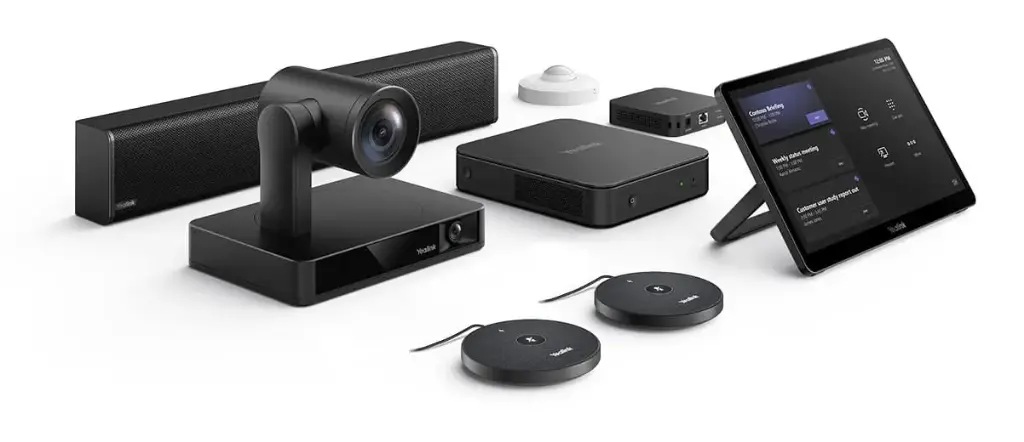

 The MVC860 features the mini-PC MCore Pro, the touch panel MTouch Plus, and the 4K PTZ camera UVC86. The MCore Pro combines three HDMI ports with EDID to offer flexible deployment options for meeting rooms. The MTouch Plus is an 11.6-inch touch panel that allows multiple participants to control the meeting process simultaneously, ensuring everyone can engage easily. Additionally, the UVC86 camera can be mechanically rotated to adjust the framing as needed. The system supports a variety of microphones, including both wired and wireless options—such as the VCM35, VCM36-W, and the CPW65—allowing for dynamic sound pickup across various setups. Enhanced audio features, such as Yealink's unique noise cancellation technology, ensure that conversations are crystal clear, minimizing background distractions. The system also supports third-party device compatibility for those looking to integrate additional audio equipment or content sharing solutions.

Yealink MVC860 Features:

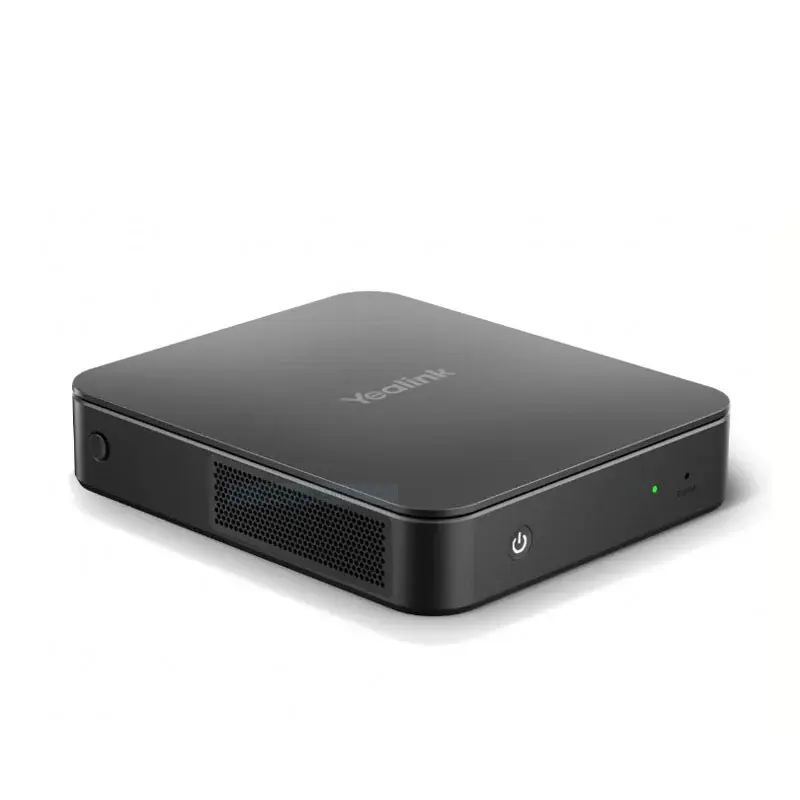

MCore Mini-PC

  • 8th-gen Intel® QUAD-CORE i5
  • Memory: 8GB (2 x 4GB)
  • Storage: 128GB SSD
  • 2 x HDMI video output with CEC supported
  • Bluetooth and Wi-Fi
  • 1x Yealink VCH port, connect to MTouch II
  • 4 x USB3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot
  • Built-in cable management

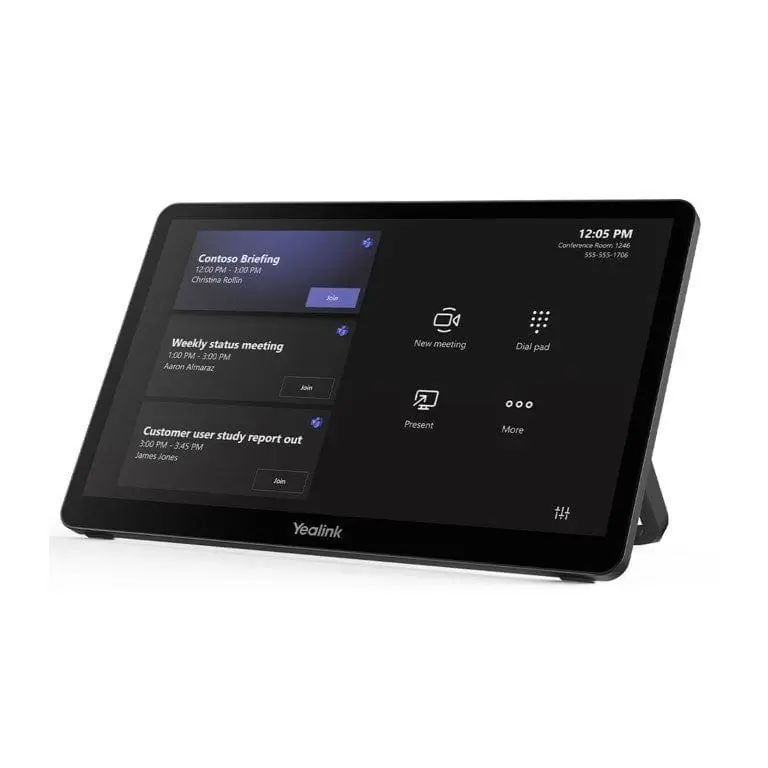

MTouch Plus

  • 11.6-inch narrow-frame touch screen
  • Supports multiple panels for simultaneous control
  • Flexible deployment positioning
  • User-friendly interface
  • Enhanced meeting control capabilities
  • Integration with Yealink MVC860 system
  • Customizable settings and features
  • Compatible with Microsoft Teams
  • High-resolution display

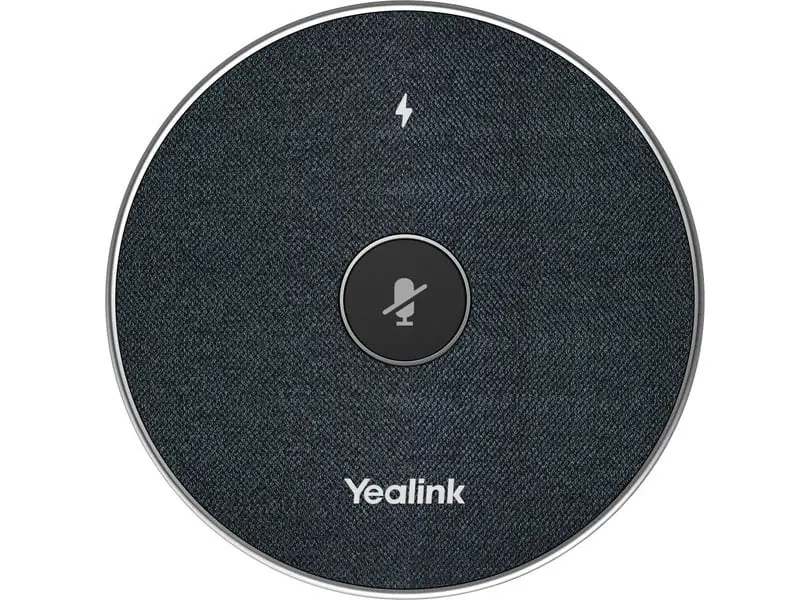

VCM36-W Wi-Fi wireless microphone

  • DECT technology, up to 50 meters distance
  • 10ft (3-meter) voice pickup range of every microphone unit
  • Supports up to 4 wireless microphone units
  • Built-in Li-battery, 11 days standby, 19 hours talking time
  • Charging cradle, charging any time

RoomSensor

  • Built-in 3-microphone array
  • 360° 20ft (6-meter) voice pickup range
  • Cascade connection up to 4 units
  • Mute button with bicolor LED

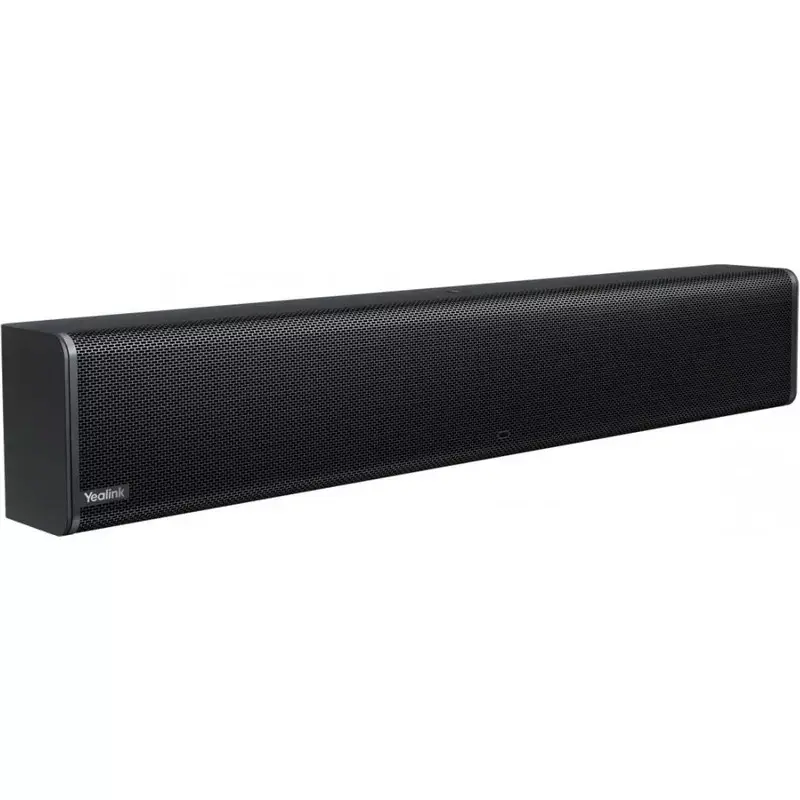

Yealink Soundbar

  • Frequent response：100Hz - 20KHz
  • S/N：≥70dB
  • 1 x Line-in (3.5mm)

UVC86 PTZ Camera

  • 1920 x 1080 video resolution
  • 60 frame rate
  • 5x optical zoom
  • Field of view (diagonal): 91°
  • Auto-framing
  • Camera presets
  • Pan range: 60°
  • Tilt range: 40°
  • 1 x Line-in (3.5mm)
  • 1 x Line-out (3.5mm)
  • 1 x Yealink Microphone port (RJ-45)
  • 1 x USB 2.0 Type-B
  • 1 x USB 2.0 Type-A
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot
