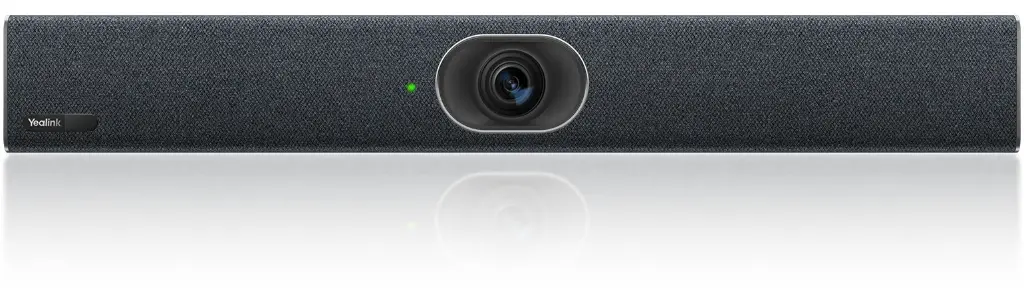

Yealink MeetingBar A20

Yealink MeetingBar A20 is an all-in-one video collaboration bar for small to medium rooms. Featuring a 20MP camera and 120° wide-angle lens, A20 delivers outstanding video quality. Together with the electric lens cap, its AI technologies, including Auto Framing and Speaker Tracking and so on, allow users to experience a smarter and safer video conference. With 8 MEMS microphone arrays and Yealink AI-based noise-proof technology, A20 brings excellent audio experience in small rooms even in full-duplex mode and ensures that everyone can be heard as well as seen.

Yealink Kenya Yealink MeetingBar MeetingBar A20
0.00 KSh 0.00 KSh
216,475.00 KSh

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
MeetingBar A20 Datasheet.pdf

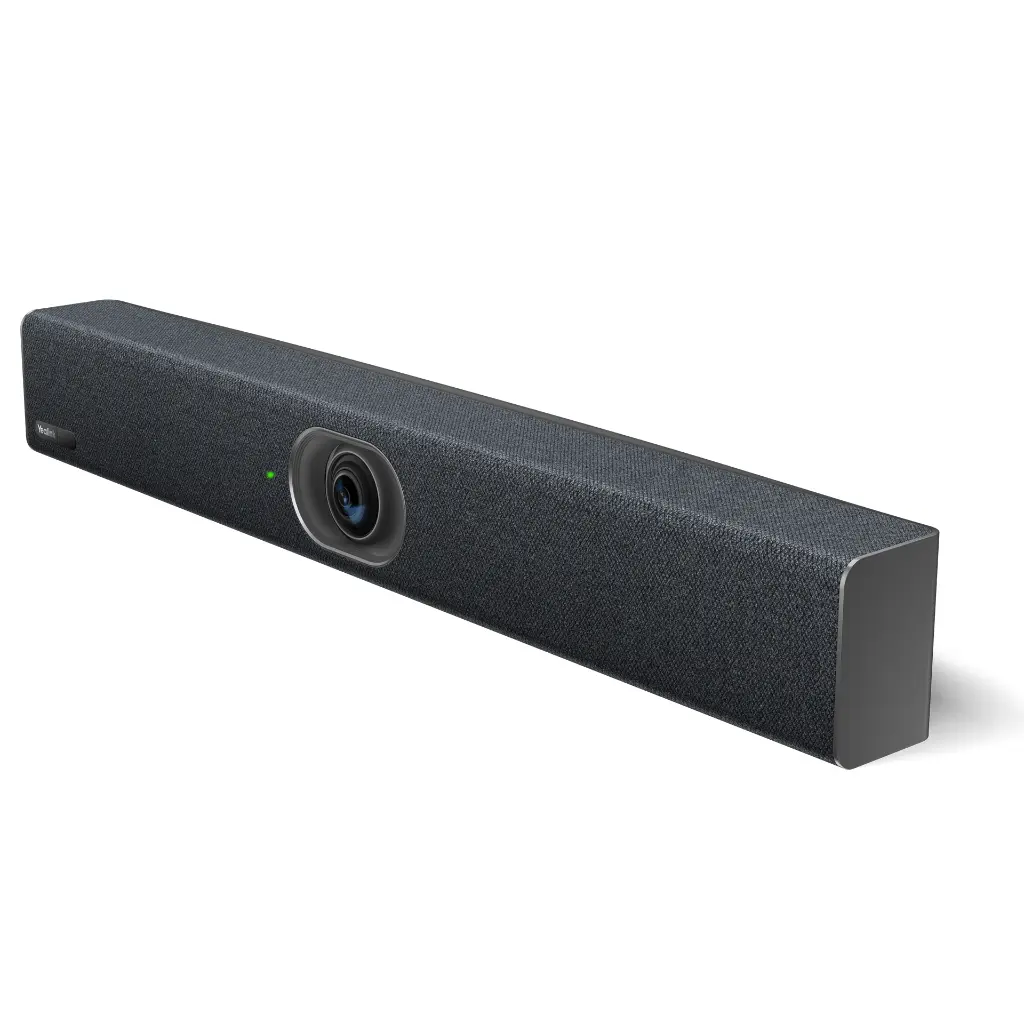

Yealink MeetingBar A20

MeetingBar A20 is designed for small rooms. It features a 20-megapixel sensor and 120° field of view, which ensure an ultra-clear and ultra-wide view even in small spaces.  The built-in 8 MEMS microphone arrays and speaker in Yealink MeetingBar A20 completely cover up to 6-meter medium-sized spaces. As the MeetingBar A20 is equipped with a powerful independent audio processing unit, you can enjoy a worry-free, full-duplex voice experience with superior performance.  Yealink AI-enhanced noise cancellation makes the audio experience more brilliant. Leveraging a massive deep-learning sound database to reduce background noises, the distracting keyboard clatter, mouse clicks, footsteps, and other ambient noises are smartly pared back, ensuring that users enjoy crystal-clear audio quality. MeetingBar A20 integrates the camera, microphones and speaker into an all-in-one system, allowing plug-and-play for a dedicated small meeting room setup within minutes. It greatly reduces the time needed for deployment and management.

Yealink MeetingBar A20 Details

Features and Specifications

Camera

  • 20 MP Camera
  • 120° field of view
  • 8x e-PTZ camera
  • Electric privacy shutter
  • 120° DFOV, 111° HFOV, 73° VFOV
  • Intelligence Features
    • Auto Framing
    • Speaker Tracking
    • Picture in Picture
    • Multi-focus Framing
    • Smart Gallery (Zoom only)

Audio

  • Built-in 8 MEMS microphone array with a voice pickup range of 6 meters
  • Yealink Noise Proof Technology
  • Full-duplex
  • AGC (Automatic Gain Control)
  • Echo cancellation
  • Built-in microphone frequency response: 100Hz to 8kHz
  • Speaker:
    • Frequency response: 105-20kHz
    • Speaker volume: 89db SPL@1W, 95db SPL@4W both +/-2db at 0.5m
    • Sensitivity: 84db SPL @ 1W @ 0.5 meter
    • Sampling rate: 48 kHz
    • Sound emission angle: Forward-facing
    • Total Harmonic Distortion (THD): at 5W, 1KHZ, ＜5%
    • Rated impedance: 4 ohms
    • Maximum power: 8 W
    • Rated power: 5 W

Network & Connectivity

  • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
  • Built-in Bluetooth 4.2
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • TLS 1.2/1.3, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, LLDP
  • IEEE802.1X
    • EAP-MD5/EAP-TLS
    • PEAP-MSCHAPv2
    • EAP-TTLS/EAP-MSCHAPv2
  • Network diagnosis: Ping, Trace route
  • Time and date synchronization using SNTP
  • Built-in certificate

Package Contents

Your MeetingBar A20 package comes with:

Your Meeting Bar

  • Yealink MeetingBar A20 endpoint

Accessories

  • 3 m Ethernet cable
  • Power adapter
  • 2 x 1.8 m HDMI cable

Additional Items

  • Mounting Bracket and Accessories
  • TV-Clip Mount
  • Quick Start Guide
